L2000® DXT Reagents

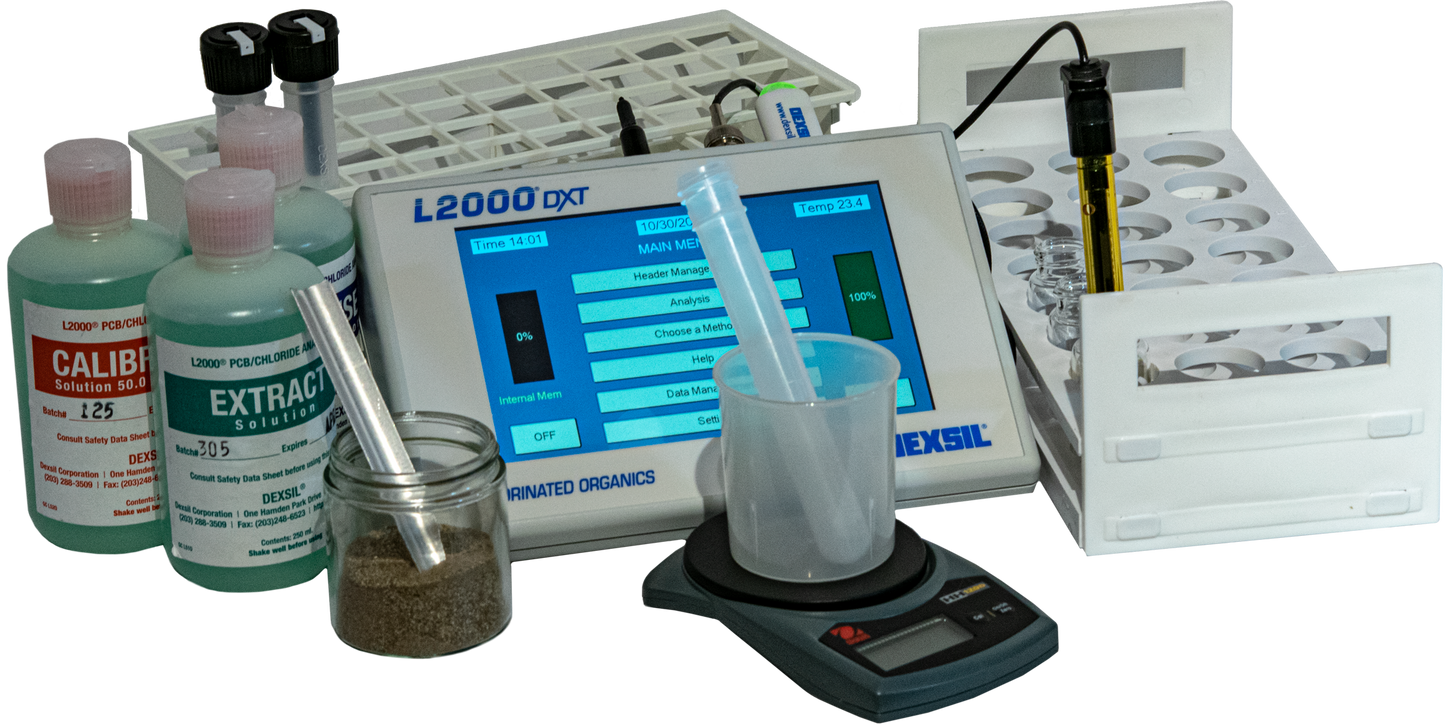

L2000 Reagents for On-Site Analysis of Soil for PCB/Chlorinated Organics

U.S. EPA SW-846 METHOD 9078

The L2000DXT PCB/organic chlorine analyzer is a field portable instrument that can quantify chlorinated compounds in *all types of soil. Soils contaminated with PCBs, chlorinated solvents, or chlorinated pesticides/herbicides can be tested on-site in just 10 minutes. Screening with the L2000DXT system can greatly reduce the number of samples requiring expensive, time intensive laboratory analysis allowing for faster decision making in the field regarding delineation, excavation, remediation.

Collected soil samples are extracted and reacted with a sodium reagent to strip the covalently bonded chlorine from the analyte(s) converting it to inorganic chloride.  The resulting chloride is then detected and quantified using a chloride ion specific electrode.  The L2000DXT then mathematically converts the chloride reading to the equivalent concentration  of the target analyte based on the percent chlorine associated with the analyte.  Note:  Inorganic chloride, e.g. road salt, will not interfere with the test.  Conversion programs are available for all major Aroclors and most common chlorinated solvents and pesticides.  Custom conversion programs can be built for less common analyte(s) not included on the L2000DX menu, instructions are included in the user manual.

The usable result range for the L2000DXT is (MDL) 3 ppm - 2000 ppm.  Results are displayed on a 7" LCD touch screen and are stored in the internal memory.  Results may also be saved to an external flash drive for easy uploading to an Excel program to make later recall and reporting quick and easy.

 *Some soils, such as wet clays, can pose an extraction problem. For information on dealing with difficult to solvate soils, please go to L2000 Two-Step Soil Reagents.

Note:  The L2000 soil reagents may used with both the L2000DX and L2000DXT analyzers.

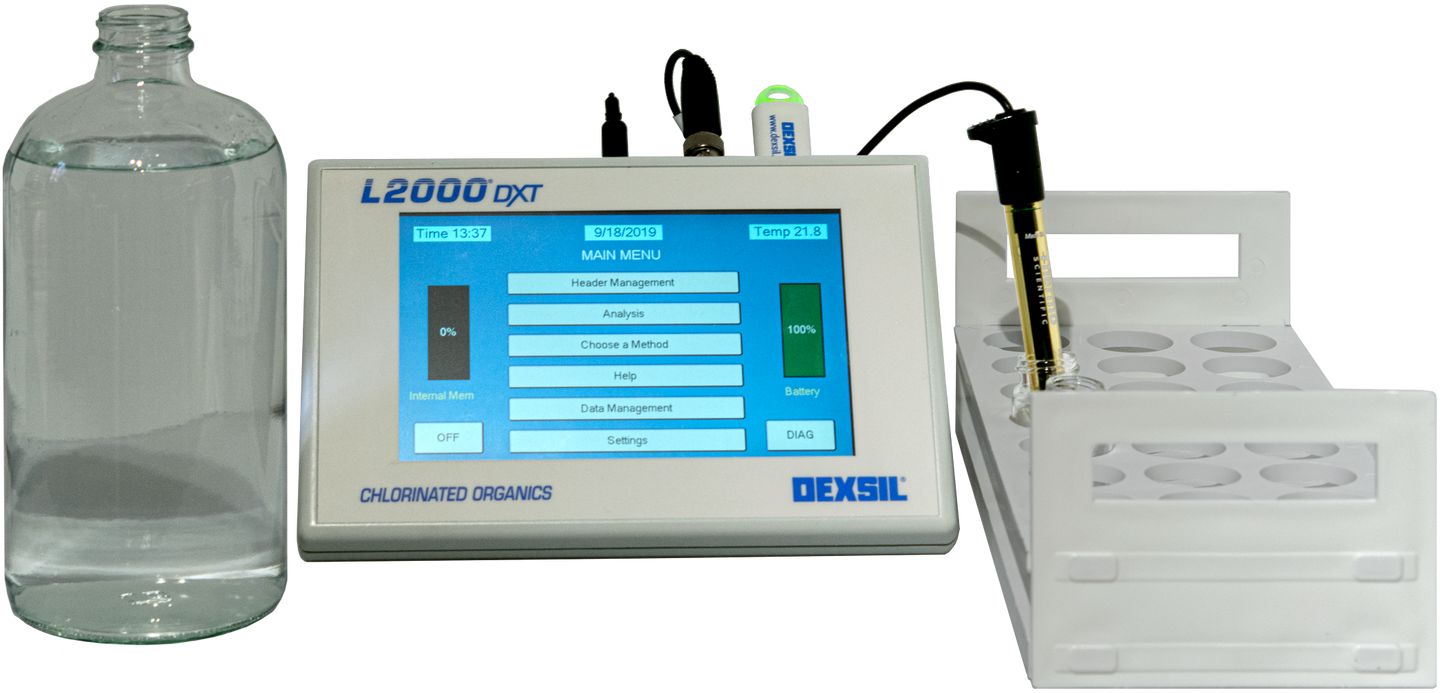

L2000 Reagents for use with L2000DX or DXT Analyzer System for Quantifying Chlorinated Organics in Groundwater

The L2000DXT PCB/organic chlorine analyzer system is an efficient, accurate tool for determining chlorinated organic compound contamination in groundwater. The L2000DXT is very easy to use with a variety of programmed methods specifically designed for water testing. Extraction efficiencies and conversion factors for over a dozen chlorinated compounds have been programmed into the instrument for accurate in-field results. In addition to the available programmed methods, customized methods can be designed by the user incorporating characteristics specific for site location and analyte.

Field trial and laboratory validation studies show that water analysis using the L2000 test method compares very well with expensive laboratory methods. This data shows that the L2000 method can accurately determine the true contaminate concentration in two ranges. The test method offers two result options: Low range: (*MDL) 20 ppb to 5 ppm (requires a 1 liter sample), and high range (*MDL) 3 ppm to 2000 ppm. Inorganic chloride will not interfere with the test.

Results for the L2000DXT are displayed on a 7" LCD touch screen and are stored in the internal memory.  Results may also be saved to an external flash drive for easy uploading to an Excel program to make later recall and reporting quick and easy.

*Note:  MDL & MQL are analyte dependent.

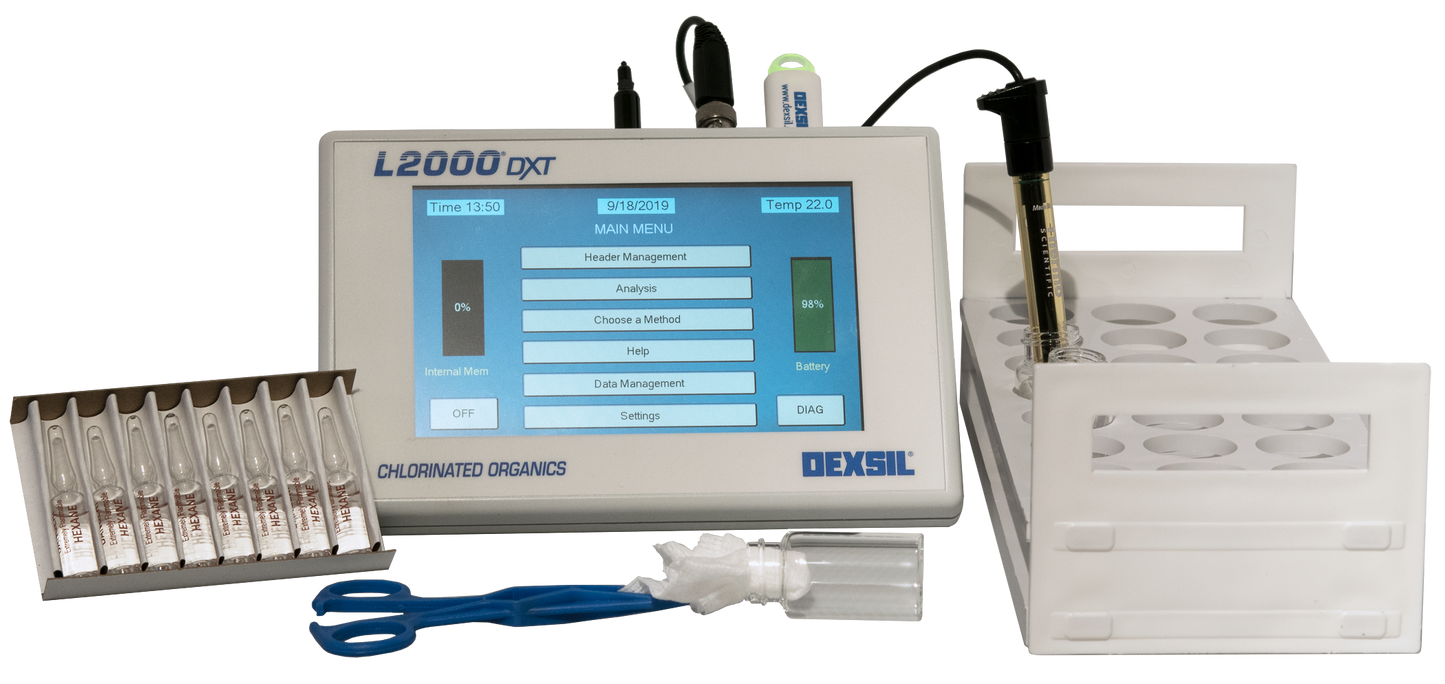

PCB Test Reagents for Surface Wipe Samples for Use with the L2000DX or DXT Analyzer

The L2000DXT Analyzer System offers environmental testing versatility including PCB testing of surface wipe samples.  If waiting for laboratory results for surface wipes is not an option, the L2000DXT system can provide on-the-spot screening in just a few easy steps with results in less than 10 minutes.  This test method requires wiping an area 1000 cm²; results are provided in µg PCB/100 cm² .  Results are not specific to any Aroclor, they are determined by extracting and quantifying the chlorine associated with PCBs.  The amount of chlorine is directly proportional to the amount of PCB.

Collected wipe samples are extracted and reacted with a sodium reagent to strip the covalently bonded chlorine from the analyte(s) converting it to inorganic chloride.  The resulting chloride is then detected and quantified using a chloride ion specific electrode.  The L2000DXT then mathematically converts the chloride reading to the equivalent concentration  of the target analyte based on the percent chlorine associated with the analyte. Conversion programs are available for all major Aroclors and most common chlorinated solvents and pesticides.  Custom conversion programs can be built for less common analyte(s) not included in the L2000DXT menu, instructions are included in the user manual.

The usable result range is (MDL) 3 µg 100cm² to 2000 µg 100cm².  Results for the L2000DXT are displayed on the 7" LCD touch screen and are stored in the internal memory.  Results may also be saved to an external flash drive for easy uploading to an Excel program to make later recall and reporting quick and easy.

In addition to test reagents, each wipe reagent pack include everything needed to collect 20 wipe samples; gauze pads, individually sealed glass ampules containing chromatographic hexane, sample vials, as well as PCB rated gloves and plastic goggles for safety.

Note:  The L2000 wipe reagents may be used with both the L2000DX and L2000DXT analyzers.

L2000 Two-Step Soil Extraction Recommended for Hard to Extract Wet Clays

Soils, such as wet clays, pose an extraction problem with most extraction solvents on the market today. If the extraction solvent cannot solvate the soil and remove the contaminant efficiently, an underestimation of the contaminant will occur. Dexsil has developed a "Two-Step Extraction Method" that allows difficult soils to be solvated efficiently for accurate and reliable results. An on-site study using the two-step method to extract PCB from lacustrine clay demonstrated that when compared to a soxhlet extraction method, the 2-step method had an extraction efficiency of >78%.

Collected soil samples are extracted and reacted with a sodium reagent to strip the covalently bonded chlorine from the analyte(s) converting it to inorganic chloride.  The resulting chloride is then detected and quantified using a chloride ion specific electrode.  The L2000DXT then mathematically converts the chloride reading to the equivalent concentration  of the target analyte based on the percent chlorine associated with the analyte.  Note:  Inorganic chloride, e.g. road salt, will not interfere with the test.  Conversion programs are available for all major Aroclors and most common chlorinated solvents and pesticides.  Custom conversion programs can be built for less common analyte(s) not included on the L2000DXT menu, instructions are included in the user manual.

The usable result range is (MDL) 3 ppm - 2000 ppm.  Results for the L2000DXT are displayed on a 7" LCD touch screen and are stored in the internal memory.  Results may also be saved to an external flash drive for easy uploading to an Excel program to make later recall and reporting quick and easy.
